This article provides images and descriptions for the primary MRI scanner components. Every component within an MRI scanner serves a unique purpose, contributing indispensably to the intricate imaging process. From the magnet’s powerful magnetic field to the software’s algorithmic prowess, each element plays a vital role in capturing detailed anatomical images. Moreover, the variations in design directly impact the scanner’s imaging capabilities, dictating factors like scan resolution, sensitivity, and imaging versatility.

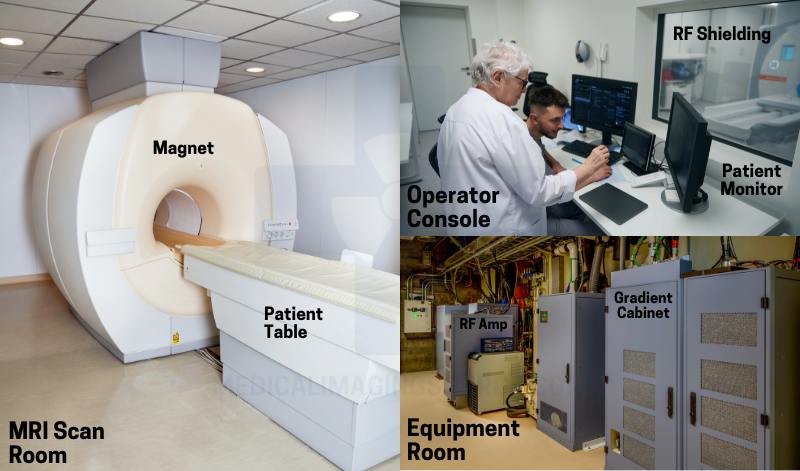

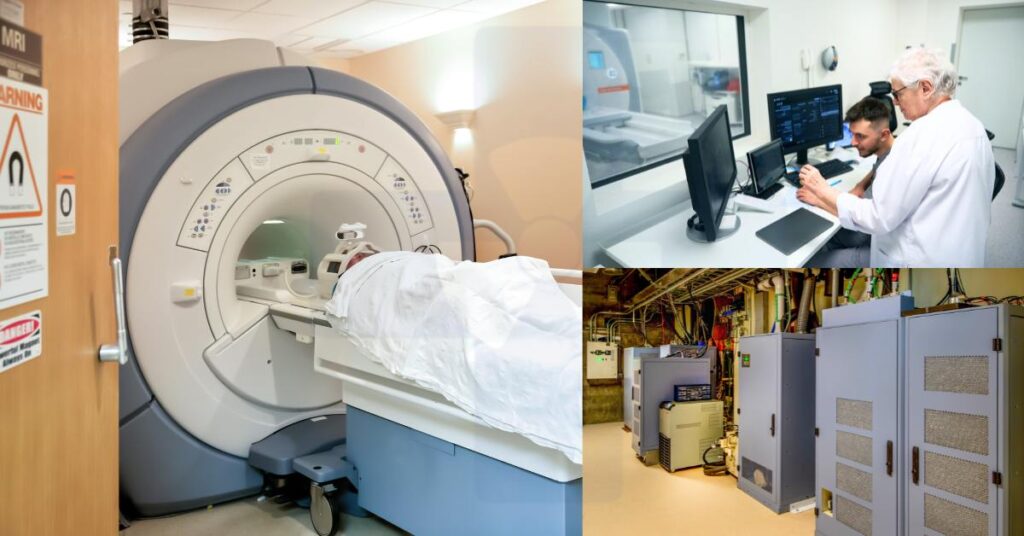

MRI Scanner Components and Functions
1. Magnet
At the heart of an MRI scanner lies a powerful magnet, generating a strong magnetic field. This magnetic field aligns the protons in the patient’s body, crucial for signal generation during imaging. MRI magnets vary in strength, with higher-field magnets offering greater image resolution but often requiring higher capacity cooling systems.
2. Cryogenic Cooling Systems
MRI scanners use cryogenic systems to cool superconducting magnets to very low temperatures, maintaining their superconducting state and maximizing magnetic field stability. The MRI cryogenic cooling system consist of a coldhead, compressor, high pressure helium lines, and magnet monitoring units. These systems regulate temperatures as low as 4 Kelvin (-269C) for optimal operation, dissipating heat to maintain superconductivity.
The coldhead and compressor assemblies can be heard in the background of every MRI scan. It is one of the three main MRI scan components responsible for producing the different MRI scan sounds.
3. Gradient Coil
MRI gradient coils produce varying magnetic fields that enable spatial encoding. These gradients facilitate spatial encoding, allowing for the localization of signals from specific regions within the body. Gradient coil designs may differ based on the strength and configuration required for specific imaging sequences, such as echo-planar imaging or diffusion-weighted imaging.
4. RF Coil

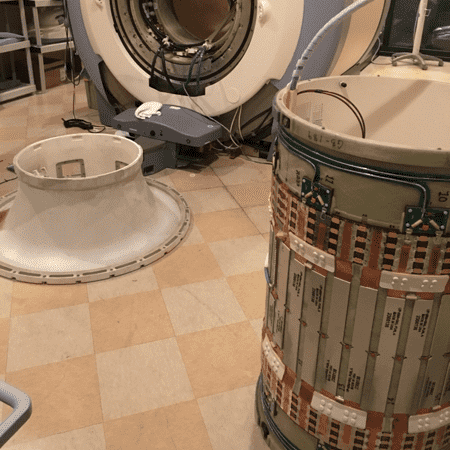

The RF coil transmits radio waves and sits within the gradient coil. It is an essential MRI component that is responsible for excitation and detection of imaging signals. RF coils manipulate and detect proton spin states by emitting customized high frequency RF pulses and then capturing the resulting signal changes. Interestingly, RF coils can be tailored to optimize signal reception from specific regions of the body, enhancing image quality and diagnostic accuracy.
RF coil designs vary in shape, size, and configuration depending on MRI scanner models. They are tailored to optimize signal reception and sensitivity for different anatomical regions and imaging protocols within the magnetic field..

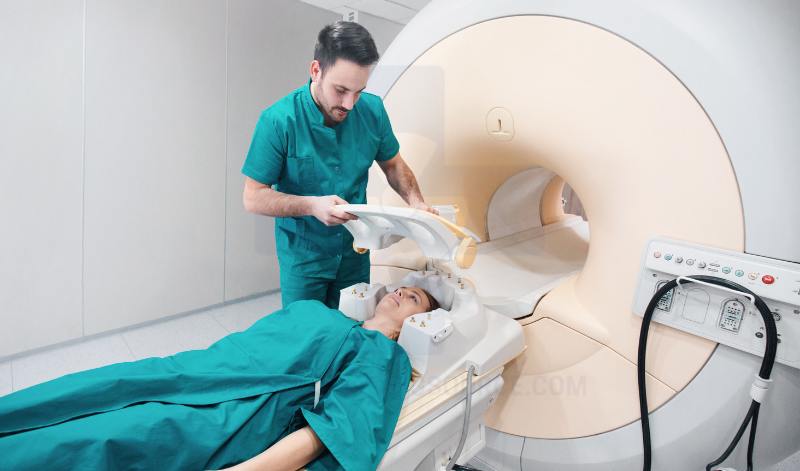

5. MRI Coils
Anatomically tailored MRI coils significantly boost imaging signals within specific body regions of interest, wrapping snugly around the targeted anatomy. These specialized devices house sets of coils and other electronics, amplifying RF transmit and receive capabilities for optimal image quality.
The term “MRI coil” encompasses various specialized coils for distinct body regions, including knee, neurovascular, spine, and torso array coils. Furthermore, MRI utilizes multiple receiver channels to further augment signal detection and refine image resolution.
6. Patient Table

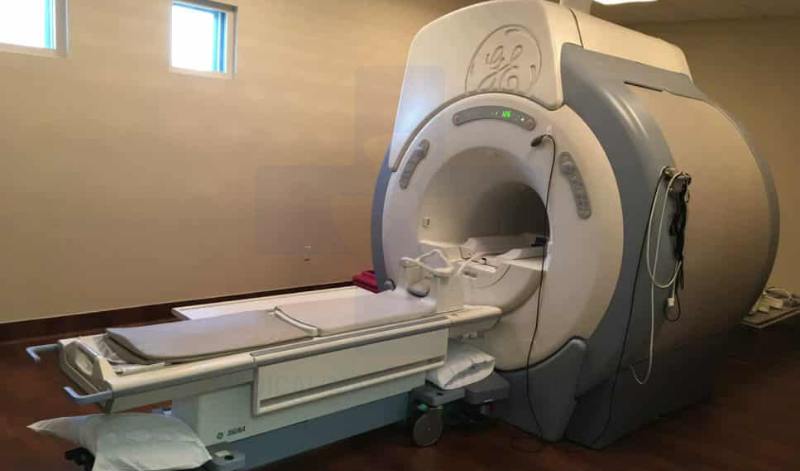

The MRI patient table is comprised of an upper and lower assembly. The upper assembly, where the patient lies, includes a tabletop, cradle assembly, and sensors to synchronize table movement during the MRI scan sequence. It moves in and out of the magnet as needed. The lower assembly incorporates elevation controls and can be adapted for use as a portable patient transport or a stationary fixed patient table assembly.
The patient table is precisely calibrated to within 0.5 mm to facilitate accurate imaging. It accomodates mri-safe padding to comfort for individuals undergoing MRI scans. Patients lie on the table, which moves into the scanner bore for imaging while ensuring stability and safety. Patient tables may feature adjustable height, padding for comfort, and compatibility with specialized coils or accessories for imaging various body parts.
7. Operator Console
The console functions as the MRI system’s central control hub, facilitating scan parameter adjustment and data acquisition. MRI technologists utilize the console to configure scan protocols, monitor scanner performance, and initiate imaging sequences. Console designs may vary in terms of user interface layout, touchscreen capabilities, and integration of advanced software features for image processing and analysis.
The operator interface streamlines scanner control and monitoring tasks for technologists, allowing them to adjust settings, monitor scans, and troubleshoot operational issues. Operator interfaces may vary in terms of graphical user interface (GUI) design, touchscreen capabilities, and integration with remote access and diagnostic reporting systems.
8. PDU (Power Distribution Unit)
Providing electricity to the scanner, the power supply ensures uninterrupted operation during scans. The power supply provides electricity to the MRI scanner, enabling its operation. Stable power delivery is essential for powering magnet coils, gradient amplifiers, RF components, and other subsystems. Power supply designs may vary in voltage regulation, redundancy features, and integration with emergency backup systems to ensure uninterrupted scanner operation.
9. Gradient Amplifiers

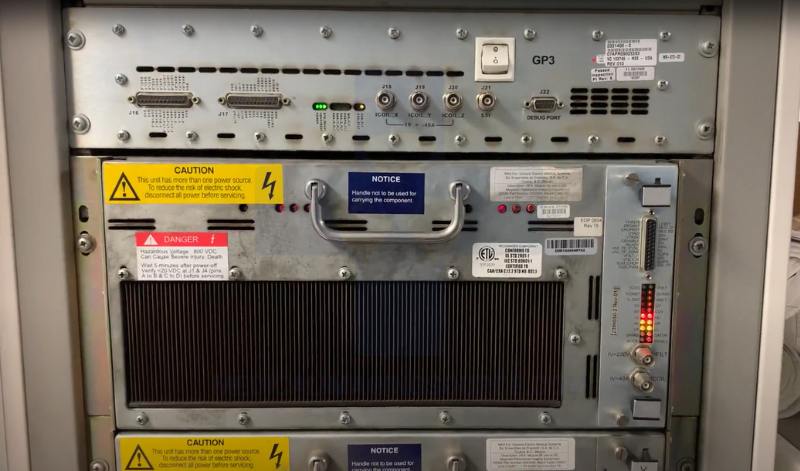

Gradient amplifiers precisely regulate the strength of gradient coils, enabling accurate spatial encoding during MRI scan sequences. This control ensures high-resolution spatial localization of MR signals. Gradients induce spatial variations in the magnetic field, facilitating precise signal localization within the patient’s body.
Different gradient designs offer options for various imaging resolutions and sequence requirements, with variations in coil geometry, wire configuration, and gradient strength.
10. RF Amplifier

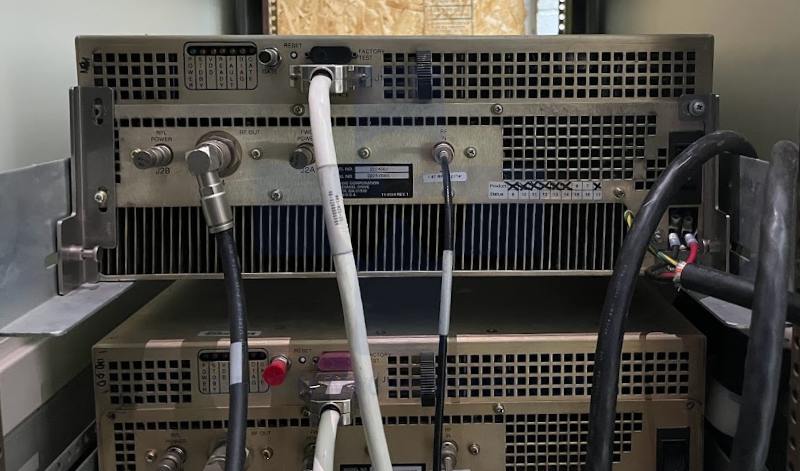

High-power RF amplifiers enhance the power of radiofrequency pulses, optimizing signal transmission and reception efficiency. They guarantee sufficient signal strength for the excitation and detection of MR signals, thereby enhancing signal-to-noise ratio and imaging sensitivity. RF power amplifiers vary in output power, bandwidth, linearity, and distortion characteristics to accommodate specific RF coil designs and imaging protocols.
11. RF Receiver Assembly

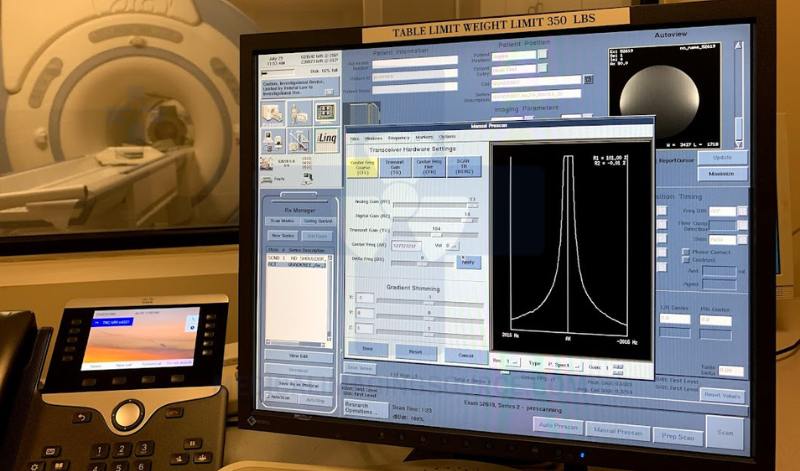

The RF receiver captures signals emitted by the patient’s body during MRI scans, converting them into digital data for processing. It facilitates signal processing and image reconstruction with high fidelity and signal-to-noise ratio.
RF receivers optimize signal detection for different anatomical regions and imaging sequences, adjusting sensitivity, dynamic range, and noise performance accordingly.
12. Image Reconstruction Computer
The image reconstruction computer within MRI machines processes raw data to generate detailed images for diagnosis. These algorithms correct artifacts, enhance image quality, and facilitate multi-planar visualization, aiding accurate diagnosis and treatment planning. MRI software varies in algorithms, visualization tools, and compatibility with scanner models and imaging protocols, with some offering advanced quantitative analysis for research or specialized clinical applications. This is a vital MRI scanner component that enable visualization of raw imaging data.
13. Peripheral Devices
MRI scan machine imaging capabilities are expanded with the use of peripheral devices including contrast injectors, patient monitors, and input devices. The devices increase imaging efficacy, assist in data visualization and improve image analysis. These devices enable technologists to review images, input patient information, and document scan results for diagnostic interpretation. Peripheral devices may vary in display resolution, connectivity options, and compatibility with third-party software for image processing and reporting.
14. MRI Safety Systems
Essential for patient and staff safety, these systems monitor for potential hazards and initiate safety protocols when necessary. MRI safety systems monitor for potential hazards and ensure patient and staff safety during MRI scans.
These systems detect anomalies such as equipment malfunction, patient distress, or ferromagnetic objects in the scan room, triggering safety protocols to mitigate risks. Safety systems may include MRI-compatible patient monitoring devices, interlock systems for magnet quenching, and audible or visual alarms for alerting personnel to safety hazards.
Related Article: MRI Safety Zones Explained
15. RF Shielding
RF shielding encases the MRI scanner, ensuring signal integrity by preventing external electromagnetic interference. The RF cage surrounding the scan room also contains electromagnetic radiation emitted during RF coil operation, minimizing interference with nearby electronic devices. While most RF shielding designs are made of a copper or stainless steel material, variations in material composition and site configuration accommodate installation constraints while maintaining optimal effectiveness. In short, enclosing the MR system within the shield minimizes electromagnetic interference and ensures compliance with safety standards.
Overview
In conclusion, the intricate synergy of these MRI scanner components transforms this system into a remarkable diagnostic tool. From the anatomically-specific RF coils to the intricate software algorithms embedded within the system, each element plays a crucial role in capturing and processing raw data into detailed images for diagnostic interpretation. As we continue to push the boundaries of medical science, the advancements in MRI scanner components promise to further enhance patient care and contribute to ongoing breakthroughs in healthcare.
