MRI is an imaging technique that uses strong magnetic fields and radio waves to create detailed images of the anatomy. One of the key components in the diagnostic imaging process is the MRI gradient coil. This component modulates the primary magnetic field to provide spatial encoding during imaging. In this article, we dive into the details of the MRI gradient coil, including function, design, and manufacturing.
What Are MRI Gradient Coils?

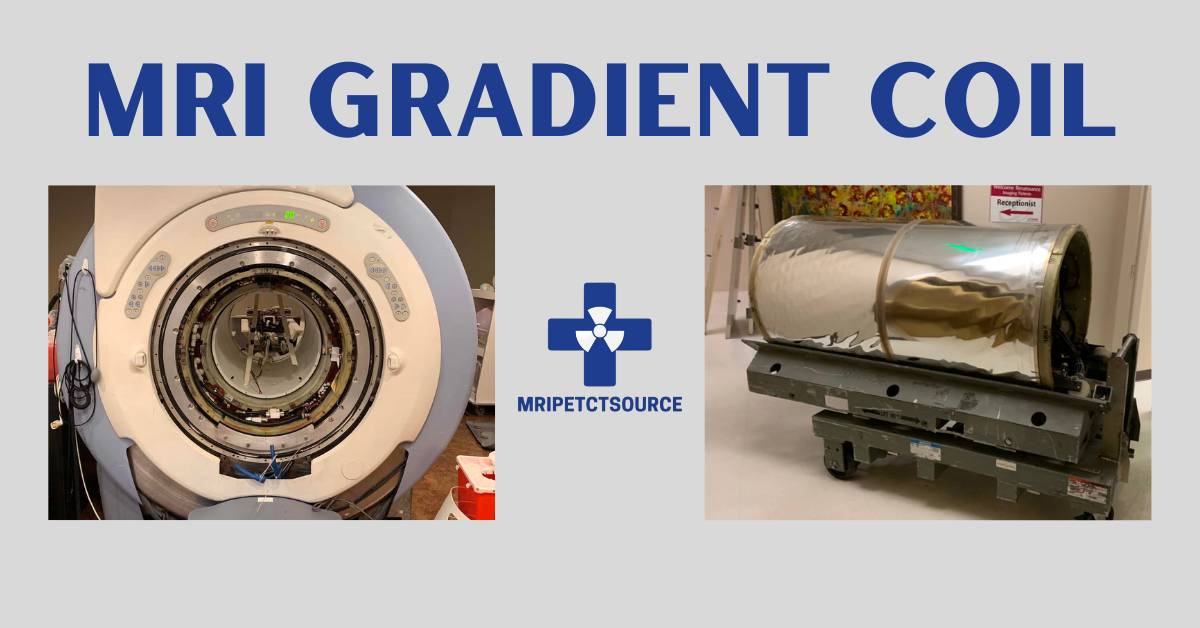

The MRI gradient coil is a secondary coil installed within the main magnetic field coil that spatially encodes the MRI signal generated by hydrogen molecules by augmenting the magnetic field.
The gradient coil creates a secondary magnetic field that varies linearly along a specific direction, usually the x, y, or z axis. By applying different gradients along each axis, the MRI machine can create a 3D image of the body.
How Does a MRI Gradient Coil Work?
In an MRI system, three gradient coils influence different planes (XY, YZ, or XZ). This is accomplished by activating and deactivating at different points in a pulse sequence. The selected scan plane and pulse sequence determine which gradient serves as the slice selective, phase encoding, and frequency encoding gradient.
The system automatically calculates this. The gradient coils, which are resistive, receive water cooling from the gradient chiller situated in the computer room.
The gradient coil generates a variable change in the magnetic field. This field induces a slight change in the frequency of the MRI signal. The MRI machine then measures the frequency change to locate hydrogen atoms and create an image.
Three sets of wire coils wrap around a fiberglass cylinder to form the gradient coils. The gradient coils rapidly turn on and off electric current, causing them to expand and contract.
This expansion and contraction generate the tapping MRI sounds during scanning.
Designs and Types
The design of the MRI gradient coil is critical to the performance of the MRI machine. Typically, manufacturers construct the gradient coil using multiple layers of copper wire, winding them into a coil shape. They wrap three sets of wire coils around a cylinder to create the gradient coils. Afterward, they encase the coil in a non-conductive material like epoxy or fiberglass for wire protection and structural support.
The gradient coil is designed to produce a linear magnetic field along a specific axis. This is achieved by winding the copper wire in a specific pattern, known as a gradient coil design. There are several different gradient coil designs, including linear, saddle, and birdcage.
The most common design for the gradient coil is the linear design. It produces a linear magnetic field along a single axis. On the other hand, the saddle and birdcage designs are utilized to generate a magnetic field that varies in both the x and y axes. These designs are especially beneficial for creating 3D images.
Manufacturing Process
The manufacturing of the MRI gradient coil is a complex process that requires a high degree of precision. The copper wire is typically wound using a computer-controlled machine, which ensures that the wire is wound precisely according to the gradient coil design.
Once winding the wire is complete, manufacturers typically apply a non-conductive coating to protect and support the coil. They then assemble the coil into the gradient assembly, which consists of the power supply and cooling system.
The power supply generates the electrical current flowing through the copper wire, creating the magnetic field. Meanwhile, the cooling system dissipates the heat from the electrical current to prevent coil overheating.
MRI manufacturers incorporate a specific maximum gradient slew rate into their machine designs, determined by the machine’s physical limitations. Nevertheless, during a scan, the MRI technologist or radiologist typically determines the specific value based on the patient’s specific imaging requirements.

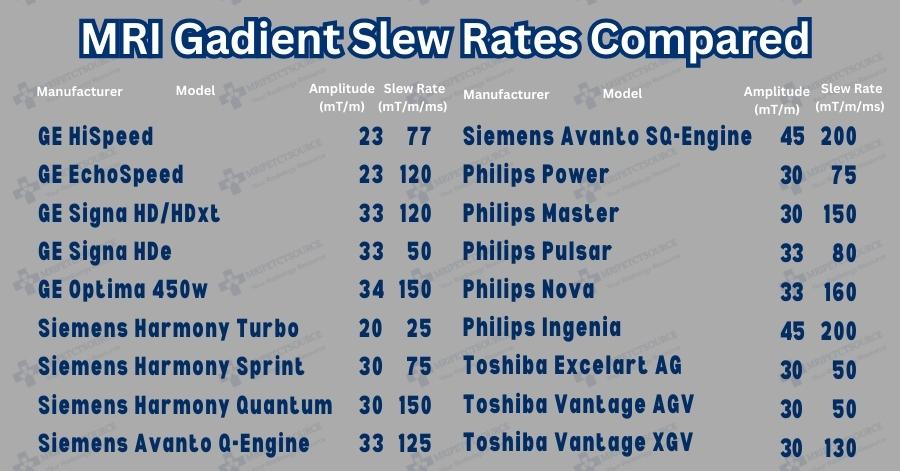

What is an MRI Gradient Slew Rate?
The MRI gradient slew rate measure the speed at which a gradient reaches its maximum amplitude. Slew rate is measured in millitesla per meter per microsecond (mT/m/ms). In short, a higher slew rate allows for thinner anatomical slices, resulting in enhanced clarity in the resulting image.
The gradient slew rate is a measure of how quickly the gradient magnetic field changes over time. A high slew rate means that the gradient magnetic field changes quickly, while a low slew rate means that the gradient magnetic field changes more slowly.
Why do MRI gradient slew rates matter?
The gradient slew rate is an important parameter in MRI because it can affect the quality of the resulting images. A high slew rate can produce images with better spatial resolution, but it can also lead to certain artifacts in the image. On the other hand, a low slew rate can reduce the risk of artifacts, but it may also result in lower spatial resolution.
Many first-time buyers mistakenly believe that they should opt for the system with the highest slew rate possible. While it’s a desirable feature, it comes at a higher price. A higher slew rate undoubtedly enhances your imaging capabilities, but the initial cost of the MRI system may be significantly greater.
Gradient Coils vs RF Coils
Gradient coils are responsible for creating precise magnetic field gradients, enabling spatial encoding and image formation in MRI. These coils generate varying magnetic fields in different directions, allowing for the spatial differentiation of signals and the production of detailed images. On the other hand, RF coils, also known as radiofrequency coils or RF receivers, are used to transmit and receive radiofrequency signals. They are placed around the body part of interest and are responsible for detecting the signals emitted by excited protons, which are then used to construct the final images.
Both gradient coils and RF coils are crucial for the functioning of an MRI system and play integral roles in the acquisition of high-quality diagnostic images.
Overview
In conclusion, the MRI gradient coil is a critical component of the MRI system, responsible for spatially encoding the MRI signal. The design and manufacturing of the gradient coil are key to the performance of the MRI machine, and require a high degree of precision and expertise.
As MRI technology continues to advance, the gradient coil will play an increasingly important role in improving image quality, reducing scan times and maximizing scan efficiency. With ongoing research and development, we can expect to see even more advanced gradient coil designs and manufacturing techniques in the future.
