From Magnetic Resonance Imaging (MRI) and Computed Tomography (CT) to Positron Emission Tomography-Computed Tomography (PET-CT), the use of contrast media in radiology has revolutionized the way healthcare professionals visualize and interpret anatomical structures and physiological processes.
In the dynamic realm of medical imaging, contrast media plays a pivotal role in elevating the precision and diagnostic capabilities of medical imaging systems.
This article delves into the fascinating world of contrast media, exploring their types, mechanisms of action, and their application in different imaging modalities.

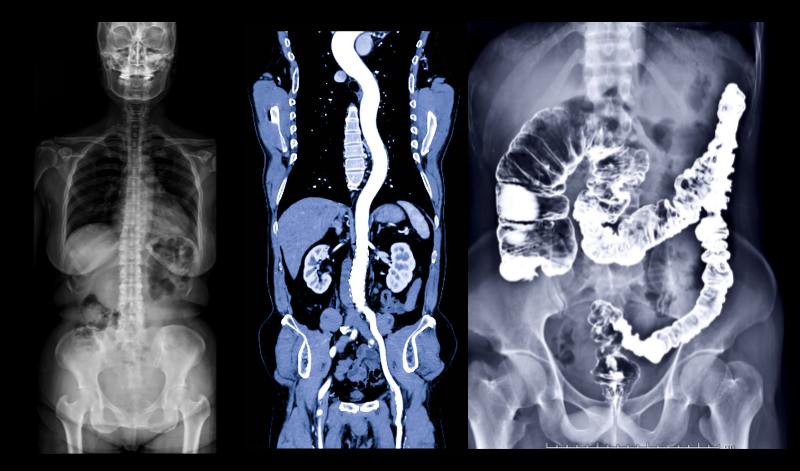

What Is Contrast Media?
![contrast media in radiology, contrast media, ct scan contrast media](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/what-is-contrast-media-agents.jpg)
Contrast media, also known as contrast agents or contrast dyes, are substances introduced into the body to enhance the visibility of specific structures during medical imaging procedures. These substances contain elements with high atomic numbers, such as iodine or gadolinium, which exhibit stark differences in radiodensity or magnetic properties compared to surrounding tissues. This disparity in physical properties allows for improved differentiation and visualization of anatomical structures.

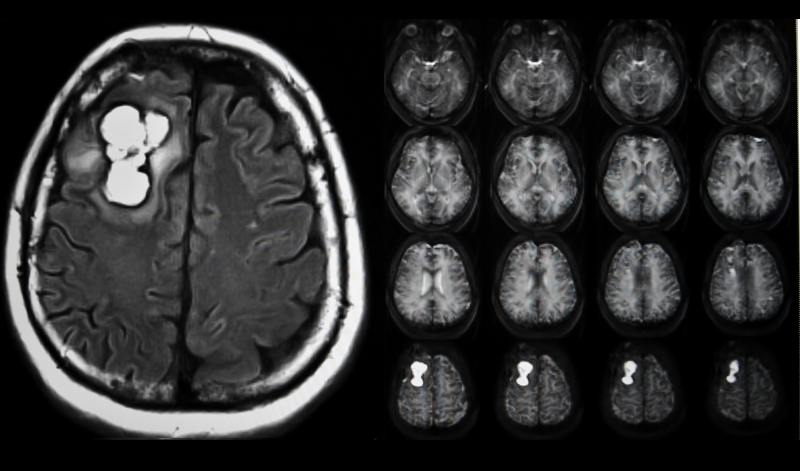

MRI Scan Contrast Media Types
MRI is a powerful imaging modality that provides detailed anatomical information without ionizing radiation. Contrast agents used in MRI are predominantly gadolinium-based, and they serve multiple purposes in enhancing image quality.
![mri contrast media, mri contrast agent](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/contrast-media-mri.jpg)
- Gadolinium-Based Contrast Agents (GBCA)
- Manganese-Based Contrast Agents
- Perfluorocarbon-Based Contrast Agents
- Superparamagnetic Iron Oxide (SPIO) Nanoparticles
- Ultrasmall Superparamagnetic Iron Oxide (USPIO) Nanoparticles
- Dendrimer-Based Contrast Agents
Gadolinium-Based Contrast Media in MRI
Gadolinium-based contrast agents are employed in MRI to exploit their magnetic properties. Unlike CT, MRI does not utilize ionizing radiation but instead relies on the magnetic resonance of hydrogen atoms within the body’s tissues.
![gadolinium, periodic table, gadolinium in mri, gbca](https://www.medicalimagingsource.com/wp-content/uploads/2023/11/gadolinium-element-mri.jpg)
Gadolinium, with its unpaired electrons, enhances the relaxation rates of nearby protons, resulting in increased signal intensity on T1-weighted images.
![gadolinium image](https://www.medicalimagingsource.com/wp-content/uploads/2023/11/gadolinium-rare-earth-metal.jpg)
Gadolinium-based contrast agents are commonly used to highlight abnormalities in soft tissues, such as tumors, inflammation, or vascular lesions. One notable advantage of gadolinium is its versatility, allowing for the assessment of both vascular and non-vascular structures with high sensitivity.

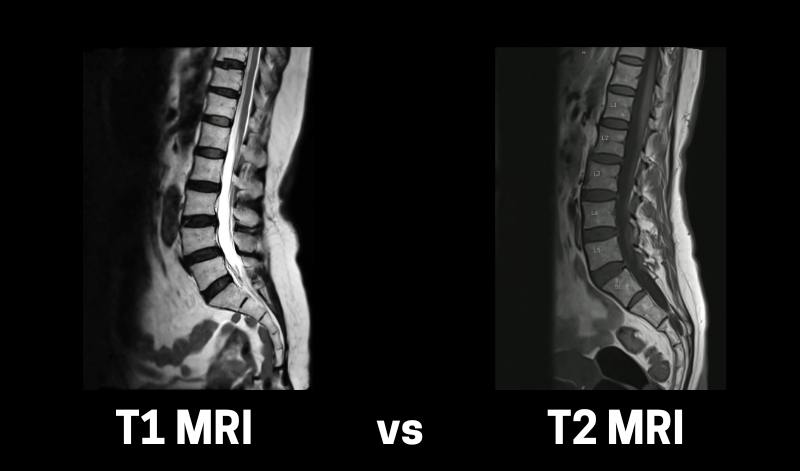

T1 and T2 Weighted Contrast Imaging
Gadolinium contrast agents primarily impact T1-weighted images, where they brighten tissues and improve the visibility of structures like blood vessels, tumors, and abnormal lesions.
The T1-shortening effect is particularly beneficial in dynamic contrast-enhanced imaging, allowing for the assessment of perfusion in various organs.
In T2-weighted imaging, gadolinium can also play a role by highlighting specific abnormalities, such as areas of inflammation or edema.
![](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/t1-vs-t1-mri-scan-image.jpg)
The contrast enhancement observed in both T1 and T2 weighted images contributes to a comprehensive evaluation of pathological conditions. Related article: T1 vs T2 MRI
Dynamic Contrast-Enhanced MRI
Dynamic contrast-enhanced MRI involves the continuous acquisition of images following the administration of a gadolinium-based contrast agent. This technique is invaluable in assessing tissue perfusion, particularly in oncology, where it aids in characterizing tumors and monitoring treatment response.
In addition to gadolinium-based contrast agents for MRI and iodinated contrast agents for CT, there are various other types of contrast media used in specific clinical scenarios. Here are some examples:
Manganese-Based Contrast Agents
Application: Used for dynamic contrast-enhanced MRI, particularly in neurological imaging and functional studies.
Perfluorocarbon-Based Contrast Agents
Application: Suitable for imaging the lungs and blood vessels, these agents enhance the visibility of vascular structures and aid in perfusion studies.
Superparamagnetic Iron Oxide (SPIO) Nanoparticles
Application: Used for imaging the liver, spleen, and lymph nodes, providing improved detection of lesions and abnormalities.
![](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/spio-nanoparticles-contrast-media.jpg)
Ultrasmall Superparamagnetic Iron Oxide (USPIO) Nanoparticles
Application: Similar to SPIO, USPIO nanoparticles are employed for enhanced imaging of the reticuloendothelial system and lymph nodes.
Dendrimer-Based Contrast Agents
Application: Under investigation for their potential in molecular imaging and targeted contrast-enhanced MRI.
Related article: MRI Contrast Agents
![ct scan contrast media types](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/ct-scan-contrast-media.jpg)
CT Scan Contrast Media Types
CT imaging relies on X-ray attenuation to generate cross-sectional images of the body. Iodinated contrast agents significantly enhance the diagnostic capabilities of CT scans, allowing for detailed visualization of both normal and abnormal structures.
- Iodinated Oil-Based Contrast Agents
- Barium Sulfate
- Carbon Dioxide (CO2)
- Renal-Safe Contrast Agents
- Dual-Energy CT Contrast Media
Contrast-enhanced CT scans are widely used in various medical fields, including neurology, oncology, and cardiology. For instance, in neuroimaging, contrast-enhanced CT helps identify vascular abnormalities, tumors, and areas of ischemia.
Intravenous Contrast in CT (IV Contrast)
Intravenous contrast is commonly administered in CT imaging to improve the visualization of blood vessels, organs, and tumors. The contrast material absorbs X-rays, leading to differential attenuation of tissues and enhancing the contrast between structures.
Oral Contrast in CT
In addition, oral contrast agents are frequently employed in CT scans of the abdomen and pelvis. These agents, often containing barium or iodine, highlight the gastrointestinal tract, aiding in the detection and characterization of abnormalities in the stomach and intestines.
Iodine-Based Contrast Media in CT Imaging
Iodine-based contrast agents are extensively used in CT imaging due to their high atomic number, which results in significant X-ray attenuation. Iodinated contrast media can be categorized into ionic and non-ionic types. While ionic contrast agents were historically more commonly used, non-ionic contrast agents are now preferred due to their lower risk of adverse reactions.
The mechanism of action involves the intravascular injection of the contrast agent, highlighting blood vessels and enhancing the visibility of organs and tissues. This is particularly useful in imaging vascular structures, such as the coronary arteries in cardiac CT angiography or blood vessels in various body regions.
Iodinated Oil-Based Contrast Agents
Used for specific procedures such as lymphangiography or hysterosalpingography, providing contrast for imaging certain anatomical structures. Click here to learn more from the FDA.

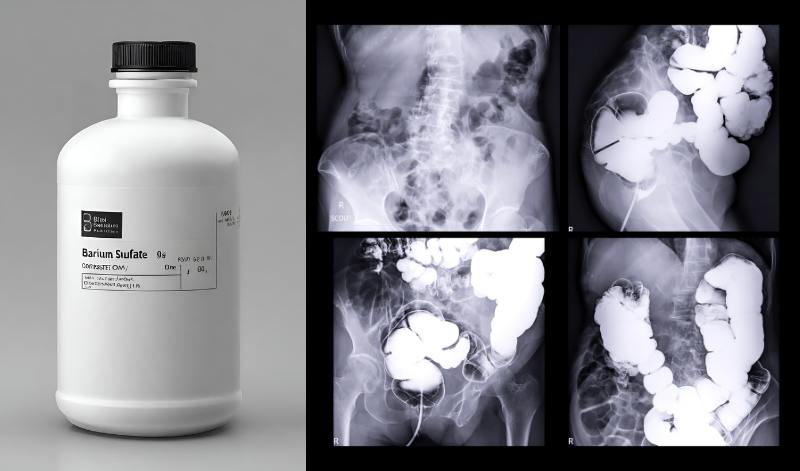

Barium Sulfate
Commonly used as an oral contrast agent in CT scans of the gastrointestinal tract, aiding in the visualization of the stomach and intestines.
![barium sulfate contrast agent, ct scan contrast media](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/barium-sulfate-ct-scan-contrast-agent.jpg)
Carbon Dioxide (CO2)
Used as a negative contrast agent in CT angiography, particularly in cases where iodinated contrast may pose a risk or be contraindicated.
Renal-Safe Contrast Agents
Developed with reduced nephrotoxicity for patients with compromised renal function, these agents are designed to minimize the risk of contrast-induced nephropathy.
Dual-Energy CT Contrast Media
Enables the acquisition of images at different energy levels, allowing for improved tissue characterization and enhanced diagnostic capabilities.
![pet scan contrast media types](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/petct-scan-machine.jpg)
PET-CT Scan Contrast Media Types
Positron Emission Tomography (PET) and CT are complementary imaging techniques that, when combined in PET-CT, provide a comprehensive assessment of both functional and anatomical aspects of tissues.
- Fluorodeoxyglucose (FDG)
- Sodium Fluoride (NaF)
- Gallium-68 (Ga-68)
- Fluorothymidine (F-18)
- Carbon-11 (C-11)
- Oxygen-15 (O-15)
- Ammonia-13 (NH3)
- Choline-Based Tracers
- Acetate-Based Tracers

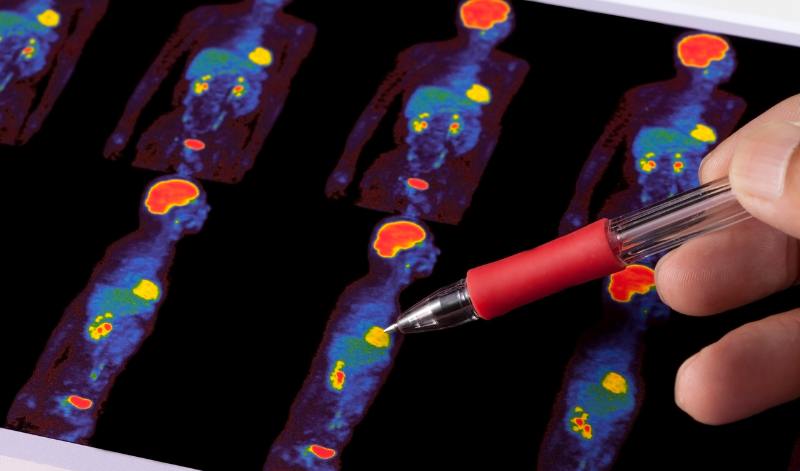

FDG Contrast Media
Purpose: Fluorodeoxyglucose (FDG), a radiolabeled glucose analog, highlights areas of increased metabolic activity, such as in tumors.
FDG enhances the visualization of abnormal metabolic activity amidst surrounding anatomical structures, improving tumor localization, staging, and treatment planning accuracy.
![Fluorodeoxyglucose contrast, petct contrast media, pet contrast agent](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/fdg-contrast-agents-petct.jpg)
Sodium Fluoride (NaF)
Purpose: Used for bone imaging.
Physicians often use NaF PET-CT to assess bone metastases, particularly in patients with certain types of cancers.
Gallium-68 (Ga-68) Radiotracers
![](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/gallium.jpg)
Purpose: Used for various imaging applications.
For neuroendocrine tumor imaging, practitioners utilize Ga-68-labeled tracers like Ga-68 DOTATATE. They bind to somatostatin receptors, aiding in the localization and characterization of neuroendocrine tumors.
Fluorothymidine (F-18)
Purpose: Used for imaging cellular proliferation.
In oncology, practitioners use FLT as a marker of cellular proliferation to assess tumor response to therapy, offering valuable information.
Carbon-11 (C-11) Radiotracers
Purpose: Used for various imaging applications.
For imaging specific biological processes or pathologies, practitioners utilize C-11-labeled tracers like [11C]Methionine, [11C]PIB (Pittsburgh compound B), and others.
Oxygen-15 (O-15) Water
Purpose: Used for perfusion imaging.
Healthcare professionals use O-15 water PET to assess perfusion in the myocardium, brain, and other tissues, offering valuable information about blood flow.
![](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/brain-mri-with-contrast.jpg)
Ammonia-13 (NH3) PET
Purpose: Used for myocardial perfusion imaging.
Physicians use NH3 PET to assess myocardial blood flow, aiding in the evaluation of coronary artery disease and myocardial viability.
Choline-Based Tracers
Purpose: Used for prostate cancer imaging.
In prostate cancer imaging, practitioners use choline-based PET tracers such as 18F Fluorocholine to detect and localize both primary and recurrent lesions.
Acetate-Based Tracers
Purpose: Used for prostate cancer imaging.
In PET-CT prostate cancer scans, applications involve the use of 11C Acetate and other acetate-based tracers as an alternative to choline-based tracers.
Contrast Media Side Effects
While contrast media significantly contribute to the diagnostic capabilities of imaging modalities, it is essential to consider potential risks and adverse reactions associated with their use.
Iodinated Contrast Agents
Adverse reactions to iodinated contrast agents can range from mild, such as nausea and rash, to severe, including anaphylaxis and contrast-induced nephropathy. It is crucial for healthcare providers to assess patient risk factors, such as allergies, renal function, and prior reactions, to determine the appropriateness of contrast administration.
Gadolinium-Based Contrast Agents
Generally, patients tolerate gadolinium-based contrast agents well, experiencing fewer allergic reactions compared to iodinated contrasts. However, concerns about the retention of gadolinium in the body, especially in patients with impaired renal function, have been raised. The medical community continues to investigate the long-term safety implications of gadolinium-based contrast agents and explore alternative formulations.
![](https://www.medicalimagingsource.com/wp-content/uploads/2023/12/contrast-media-agents-radiology.jpg)
Contrast Media Safety Outlook
Advancements in contrast media technology continue to evolve, with researchers exploring novel formulations and imaging techniques. Efforts are underway to develop targeted contrast agents that can selectively accumulate in specific tissues or cell types, providing even greater precision in diagnostics. Additionally, research is ongoing to reduce the potential side effects and improve the overall safety profile of contrast agents.
Kindly consult with your healthcare provider or refer to the official website of the contrast media manufacturer for supplementary information.
Conclusion
Contrast media in radiology have transformed the landscape of medical imaging, enabling healthcare professionals to obtain detailed and accurate information for diagnostic and therapeutic purposes. The diverse applications of contrast media underscore their indispensability in modern medicine.
As technology advances, the ongoing refinement of contrast agents and imaging techniques promises to further enhance our ability to visualize and understand the intricacies of the human body. As we navigate the future of radiology, the continued collaboration between researchers, clinicians, and technologists will undoubtedly propel the field to new heights, ultimately benefiting patient care and outcomes.
